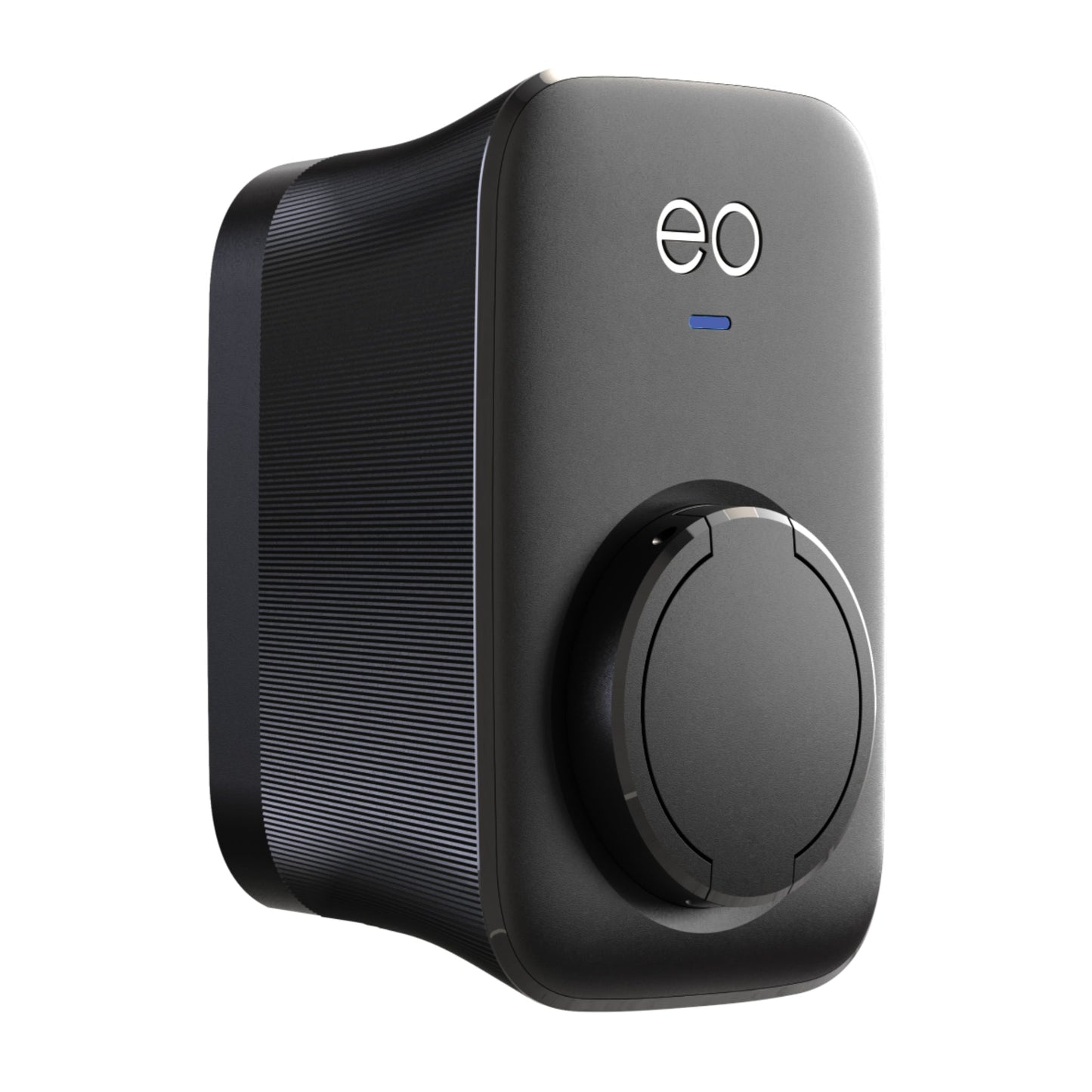

EO MINI PRO 3 - EM301-PME-DCL-GSM - 1P 7.2KW EV CHARGER IN BLACK

EO MINI PRO 3 - EM301-PME-DCL-GSM - 1P 7.2KW EV CHARGER IN BLACK

Regular price £599.00
Regular price Sale price £599.00
Save £-599.00 Sale Sold out

In stock

Payment methods
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • Shop Pay
  • Visa

GSM for no extra cost

The GSM variant is now the same price as the standard version.

Introducing the EO Mini Pro 3 - revolutionising the way you power up your electric vehicle! Designed with cutting-edge technology and a compact form factor, this charger is the epitome of convenience and smart functionality. The EO Mini Pro 3 is packed with features that will make your charging experience seamless and efficient. With its advanced load balancing capabilities, you can optimise your energy usage and reduce charging time, ensuring your vehicle is always ready for your next adventure. The sleek and modern design of the EO Mini Pro 3 will elevate the aesthetics of your home or business, while its robust construction guarantees durability and longevity. Installing and operating this charger is a breeze, thanks to its intuitive app control and easy-to-follow instructions. Take charge of your EV charging experience and join the growing community of eco-conscious drivers who choose the EO Mini Pro 3 for its reliability, efficiency, and style. Order yours today and enjoy the future of EV charging at your fingertips!

Features

  • It's small - the size of an A5 notebook
  • Ready for any weather, IP54 certified and operates in -25°C temperatures
  • No need for earth rods (built-in open PEN conductor protection)
  • Stay connected - Wi-Fi, Bluetooth, Cat 5 Ethernet & GSM
  • Smart Charger Compliant

Details

Supply Voltage 230V AC
Supply Phase
Single
Power Output Per Socket 7.2kW
Maximum Current
32A
Socket Type Type 2
Number of Output Sockets 1
Tethered Cable Length N/A
Dynamic Load Management Optional CT Clamp required
DC Leakage Protection
Yes
RCCB/RCBO No, requires Type A RCD
Maximum Input Cable Size 25mm²
Impact Strength (IK) IK08
Dimensions (H x W x D) 215 x 140 x 100mm
Weight
3kg (without cable)
Warranty 36 Months
IP Rating
IP54
IK Rating IK08
Mounting
Wall or Post (Post requires additional backplate)
Colour Black (RAL9005)
OCPP 1.6J
Yes
WCS OZEV Approved Yes
Charger Status Information
Device LED


Documentation

EO Mini Pro 3 One Pager

EO Mini Pro 3 Datasheet (UK & IE)
